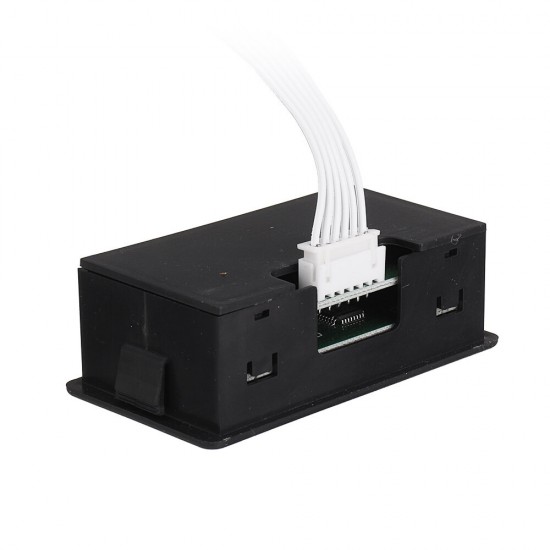

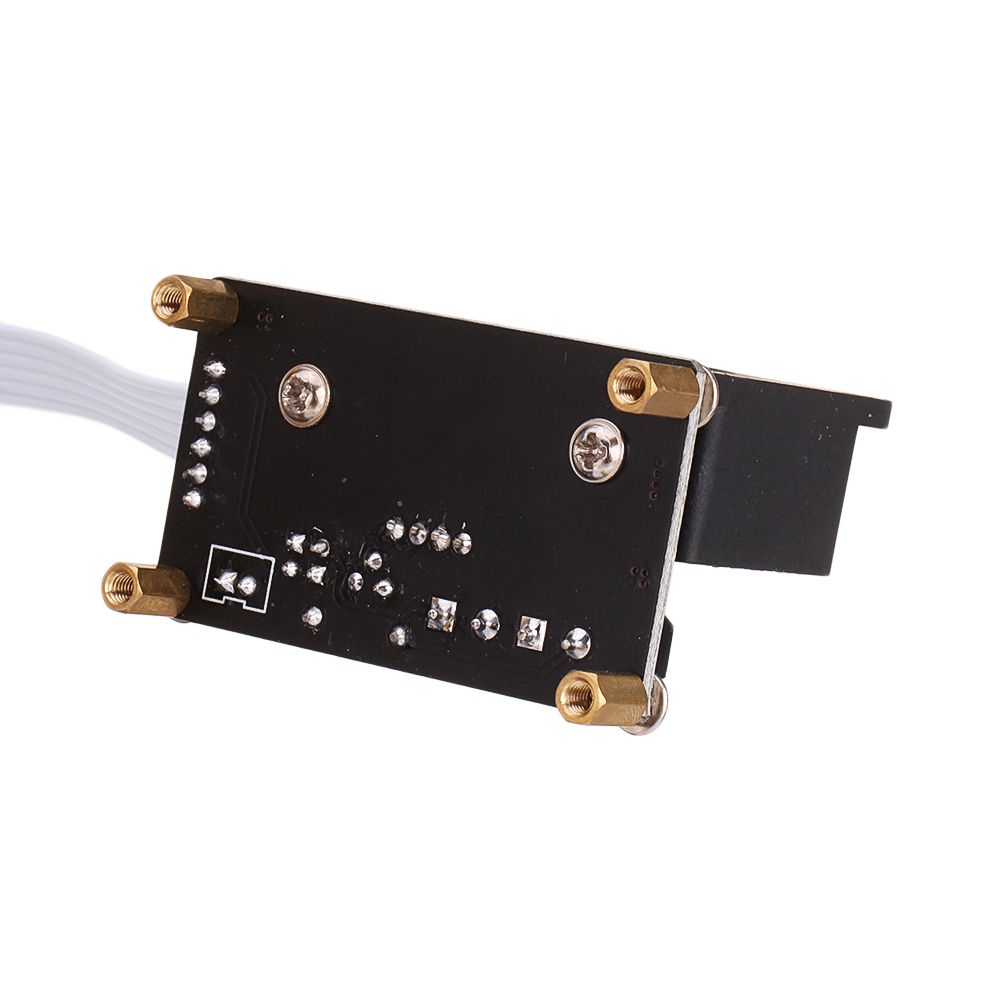

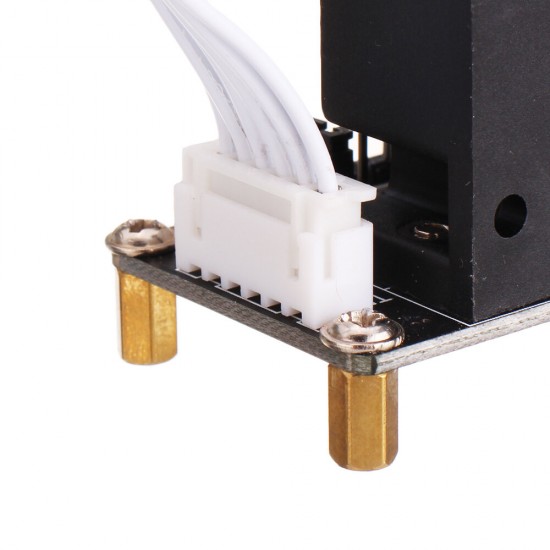

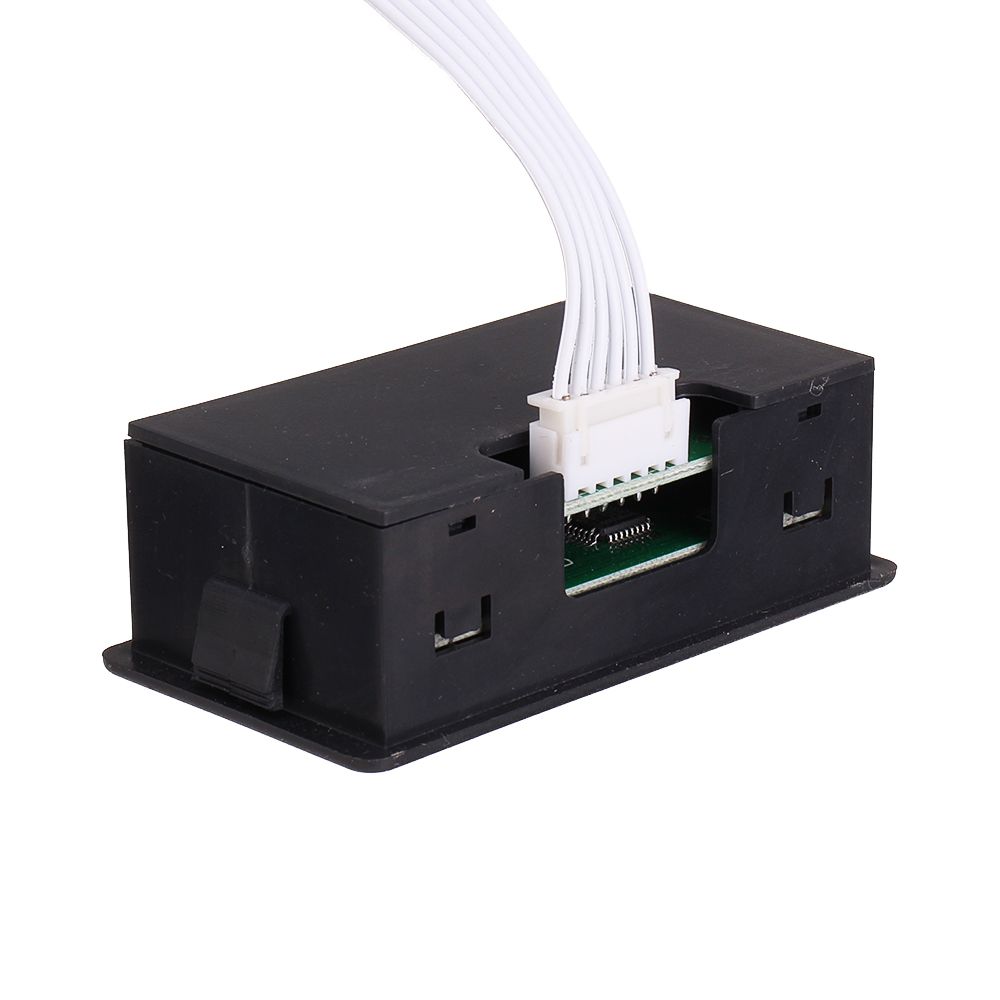

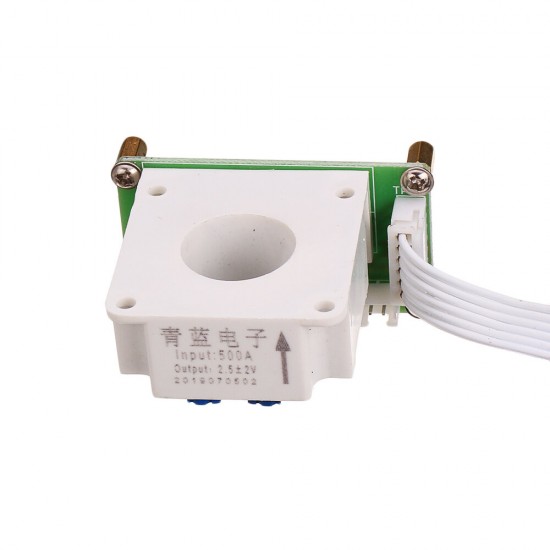

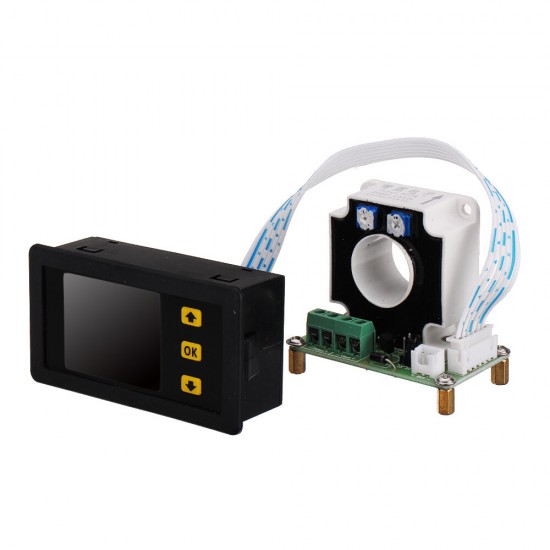

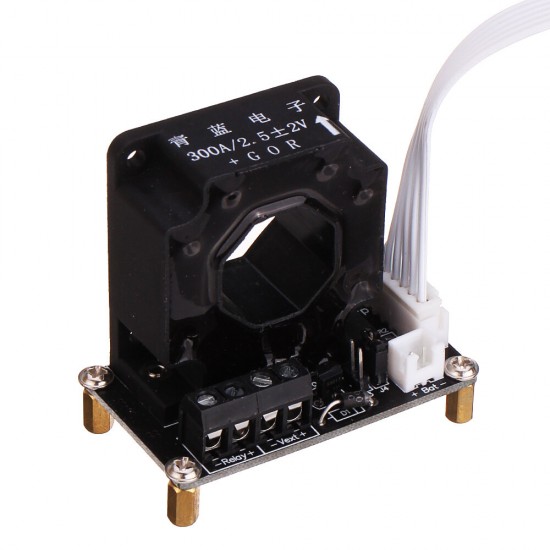

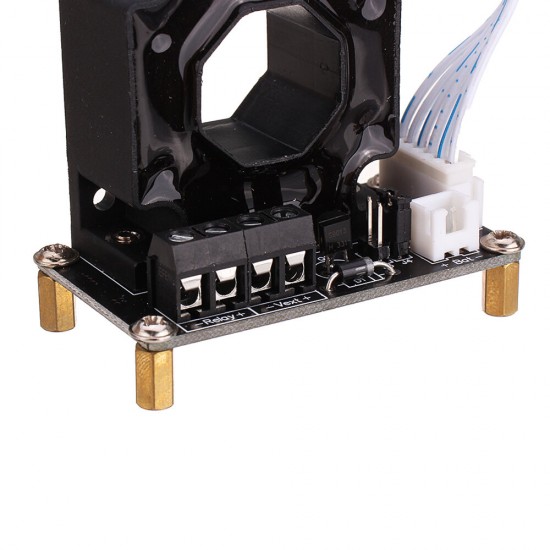

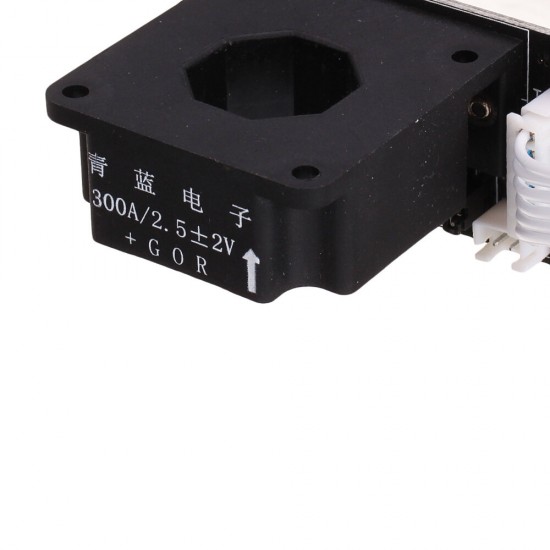

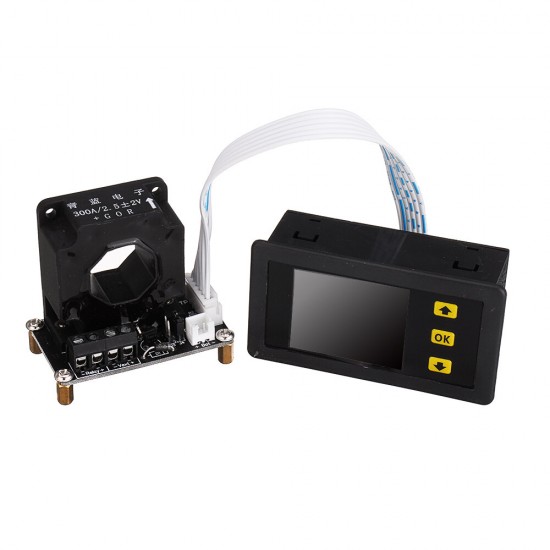

100A /200A /300A/500A LCD Combo Meter Voltage Current KWh Watt Meter 12V 24V 48V 96V DC120V Battery Capacity Power Monitoring

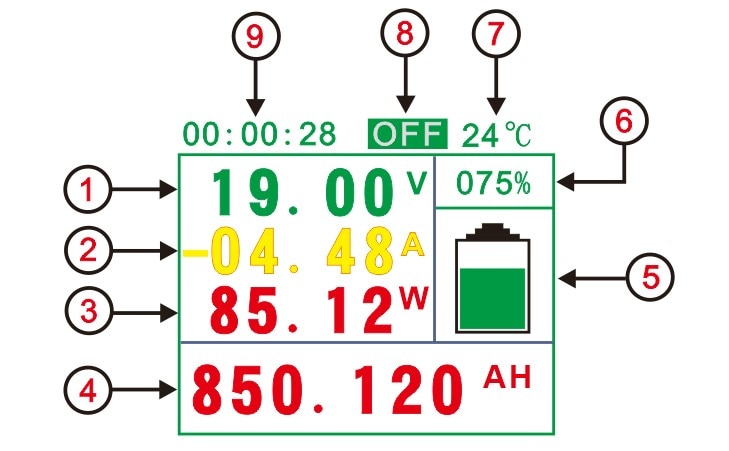

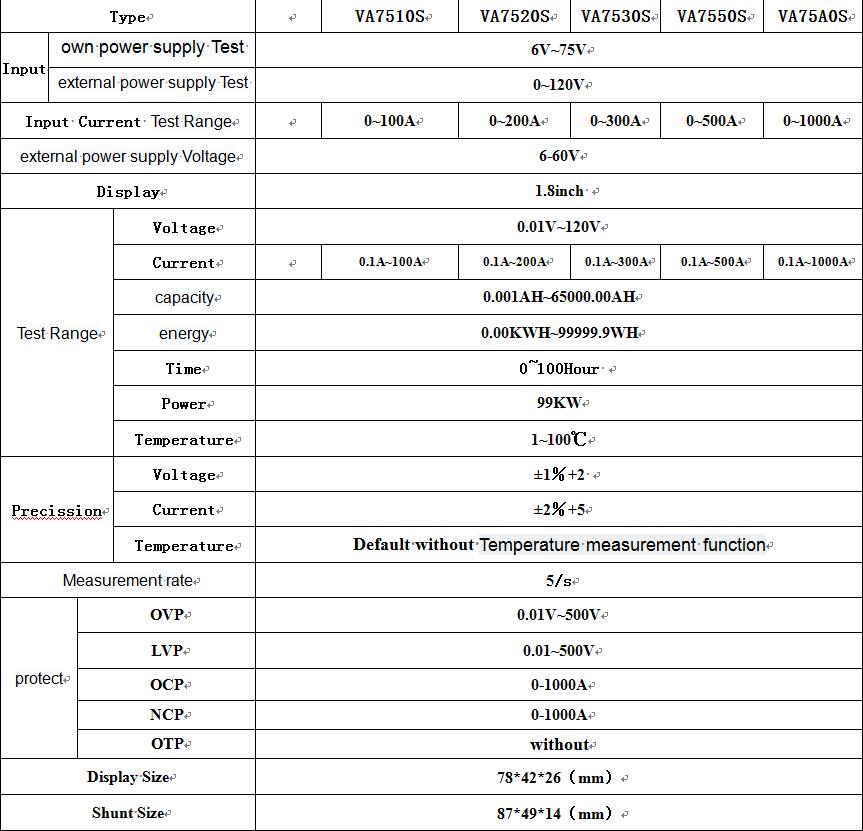

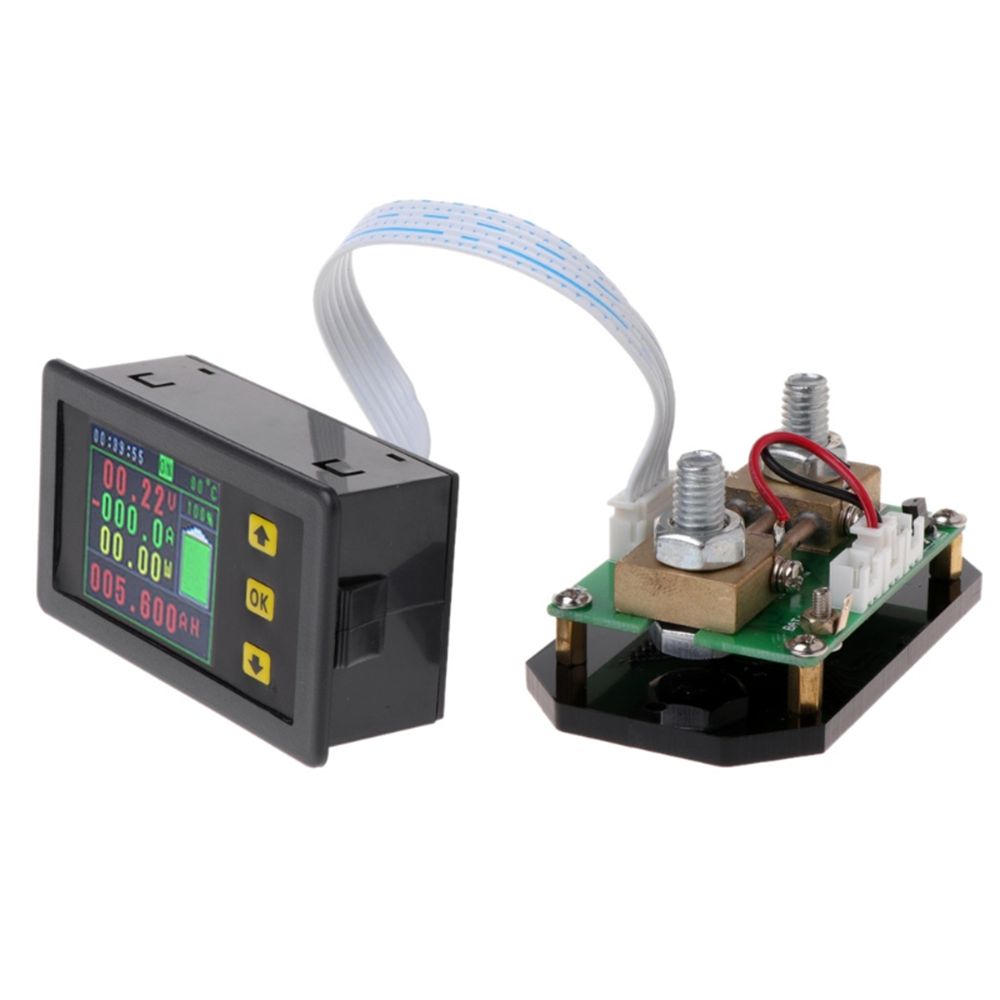

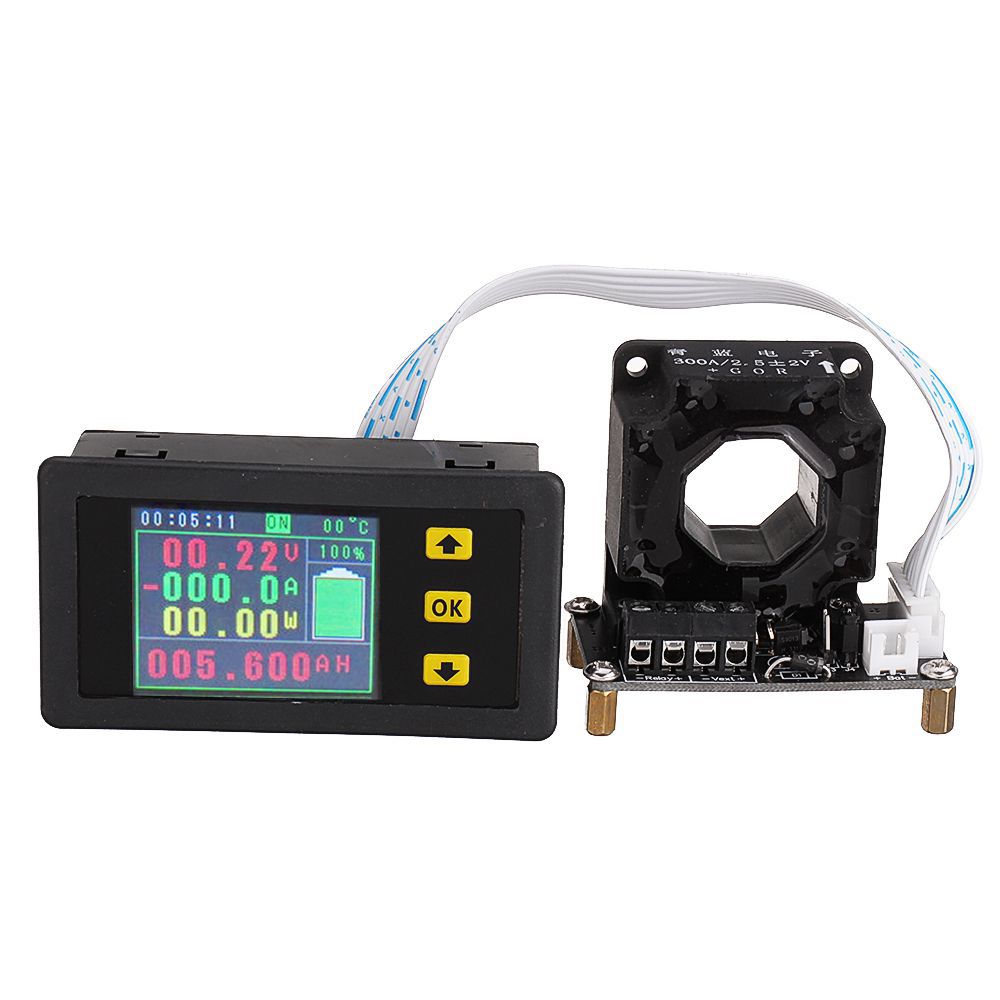

1 measured voltage value
2 Measured current value
3 measured power value
4 Accumulated capacity or energy value
5 Battery Remaining Capacity Progress Bar
6 percentage of battery remaining capacity
7 Measured temperature(Default withTemperature measurement function)
8 output status display
9 Total running time
10 Empty

Instructions:

1. AH, WH display switch, click to switch to display WH number, click to switch to display AH number.
2. Press OK key to enter the system parameter setting interface, then press OK key to switch the type of setting parameter. The set parameters include BAT, BPC, OPP, OVP, LVP, NCP, OCP, OTP, ADS, TTL, CLR, DTE. , Click to change the parameters, after the parameters are set, press OK to exit the parameter setting interface.

Function introduction:

1, "BAT" battery capacity value setting, this parameter is to set the battery measured total capacity.
2, "BPC" battery remaining capacity percentage, can be set according to the value of the remaining battery AH

4, "OVP" set over-voltage protection value, if the OVP value is set, when the actual measured voltage value is greater than the set value, it will prompt over-voltage, and cut off the relay (self-provisioned).
5, "LVP" set over-voltage protection value, if you set the LVP value, when the actual measured voltage value is less than the set value, it will prompt undervoltage, and cut off the relay (self-provisioned).
6, "NCP" set over-voltage protection value, if the NCP value is set, when the actual measurement of the charging current value is less than the set value, it will prompt over-current, and cut off the relay (self-provisioned).
7, "OCP" set over-voltage protection value, if the OCP value is set, when the actual measurement of discharge current value is less than the set value, it will prompt over-current, and cut off the relay (self-provisioned).
8, "OTP" set over-temperature protection value, if the OTP value is set, when the actual measured temperature value is greater than the set value, it will prompt the temperature, and cut off the relay (self-provisioned ,Default without Temperature measurement function).
9, "ADS" communication address code settings. In multi-machine communication, multi-machine communication is achieved by setting the address code.
10, "TTL" instrument default relay output power state, normally open or normally closed.
11, "CLR" no-load current clear function, if the actual no-load current is zero

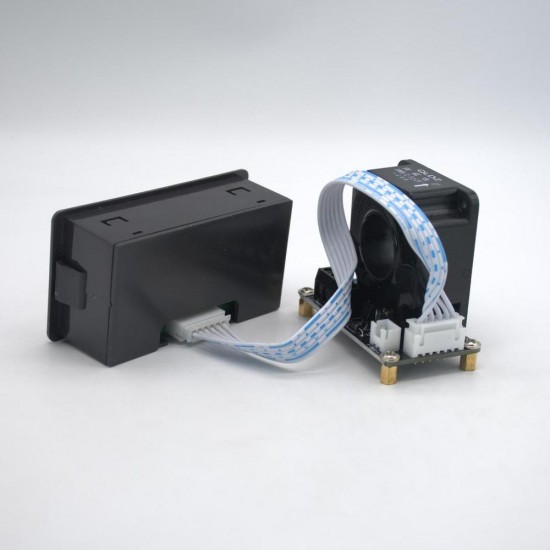

Package Included:

1 x 100A /200A /300A/500A LCD Combo Meter
