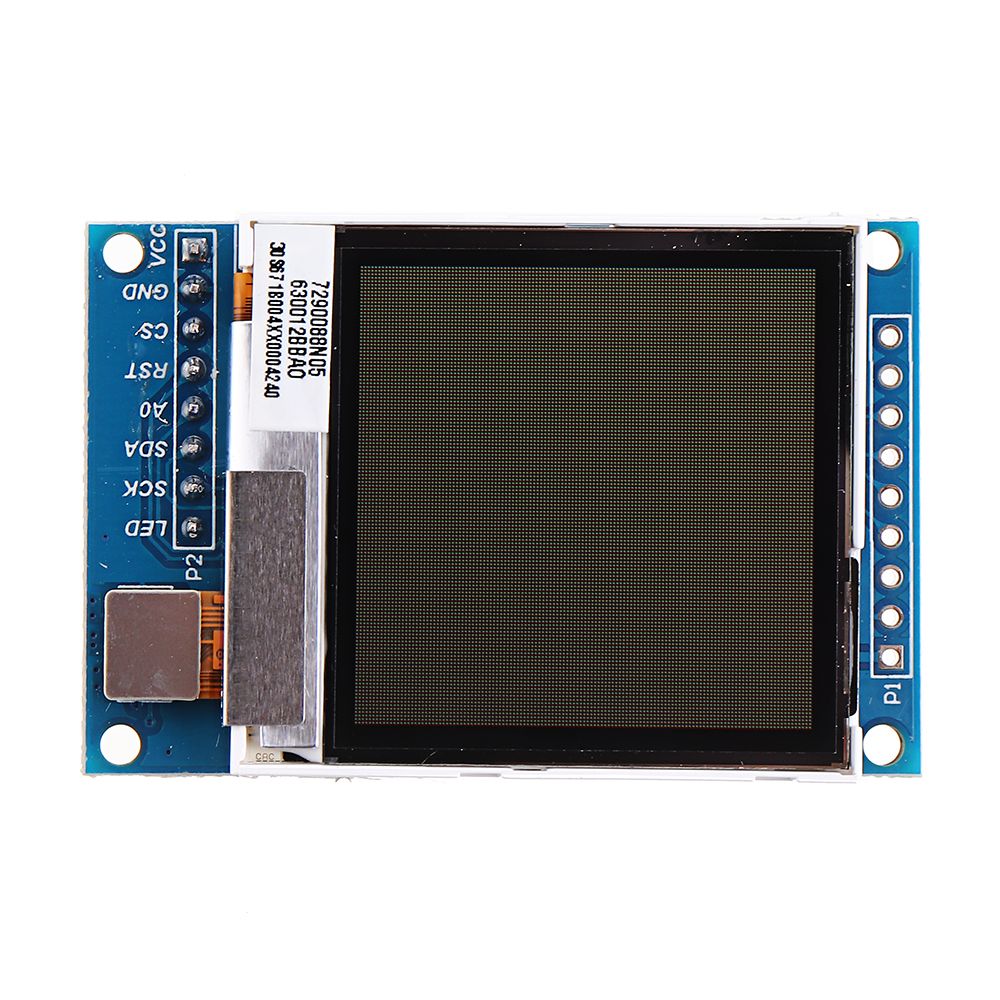

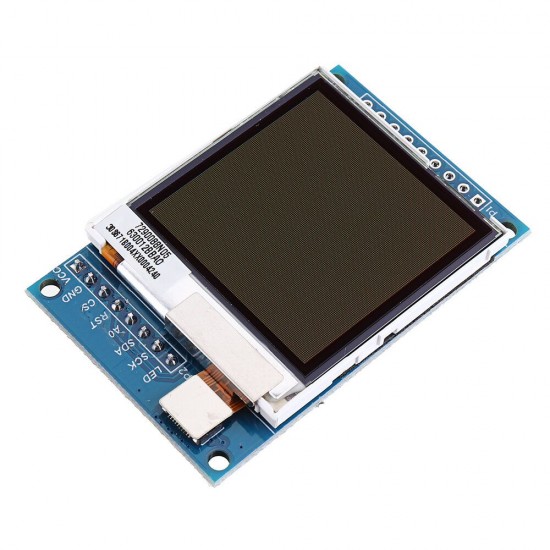

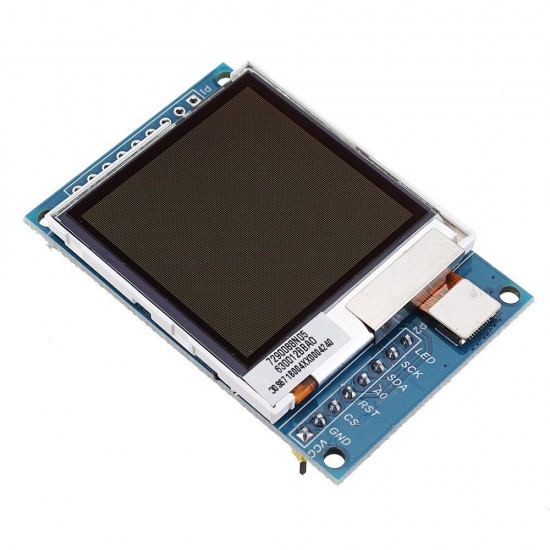

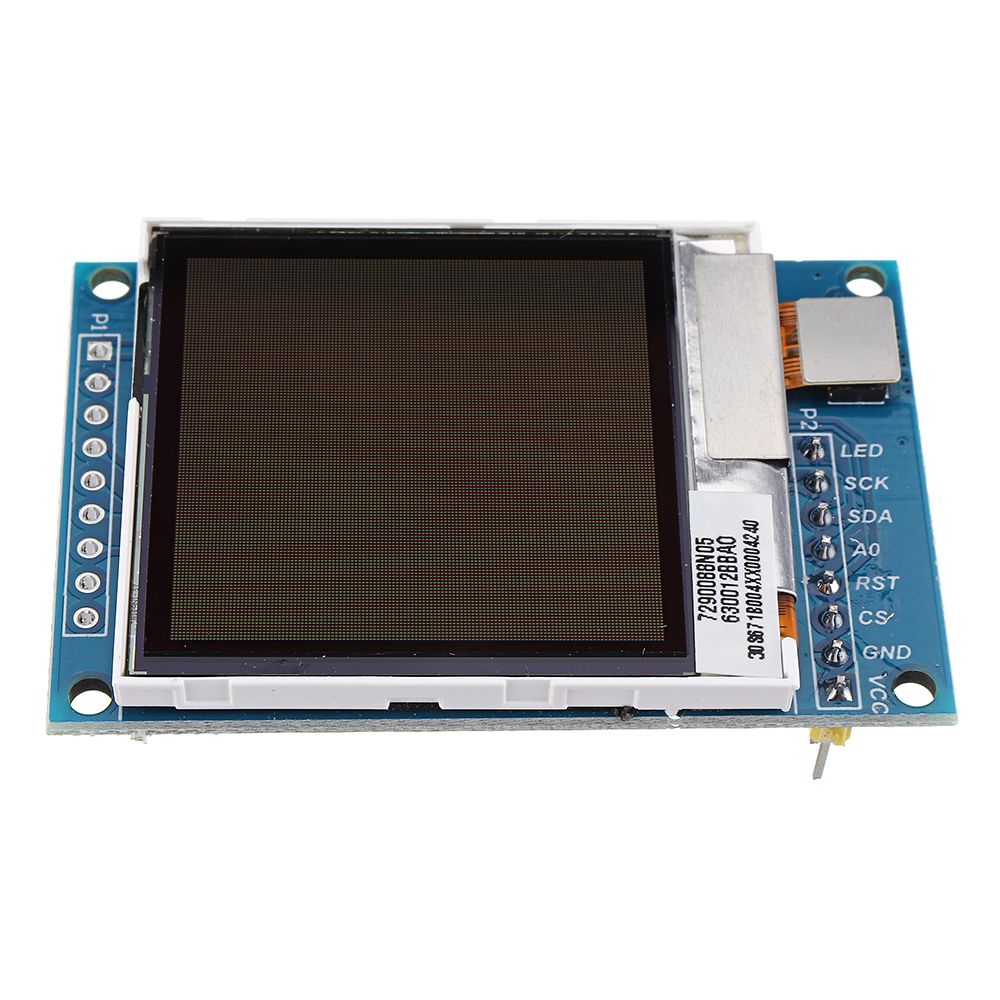

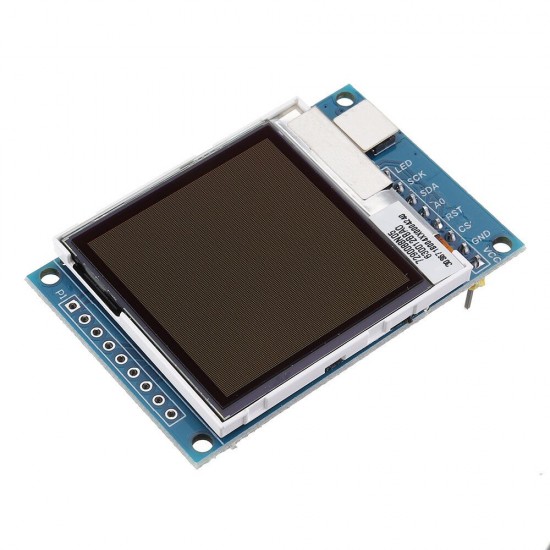

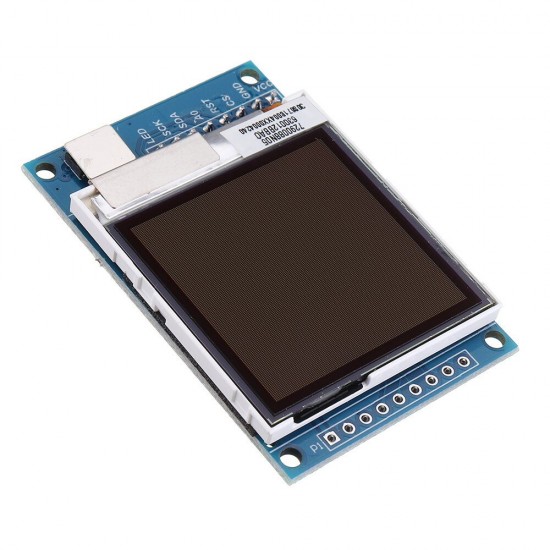

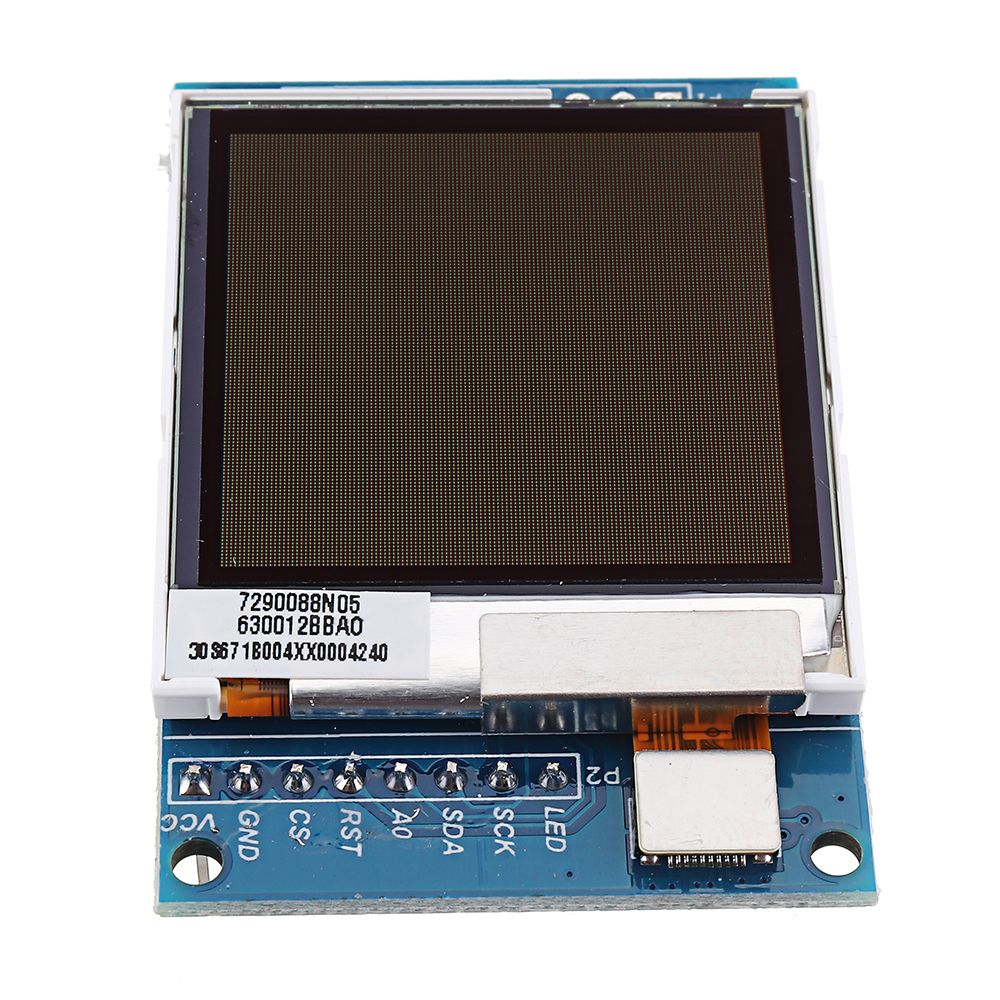

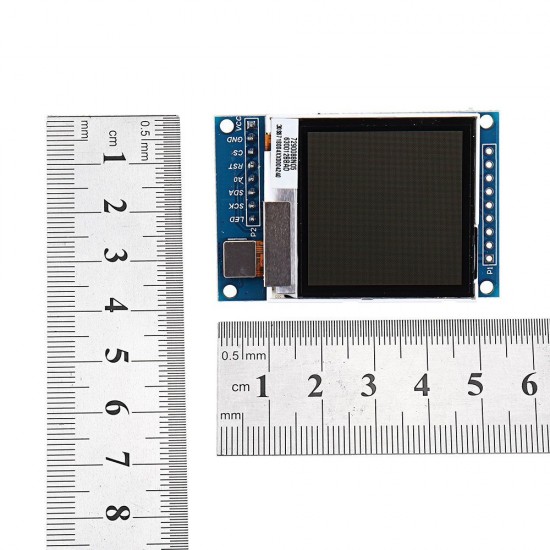

1.6 Inch Transflective TFT LCD Display Module 130X130 Sunlight Visible SPI Serial Port 3.3V 5V
- Stock: In Stock
- Model: EB0050265
- SKU: EB0050265
- Screen Size: 1.5 Inch
Precise details:

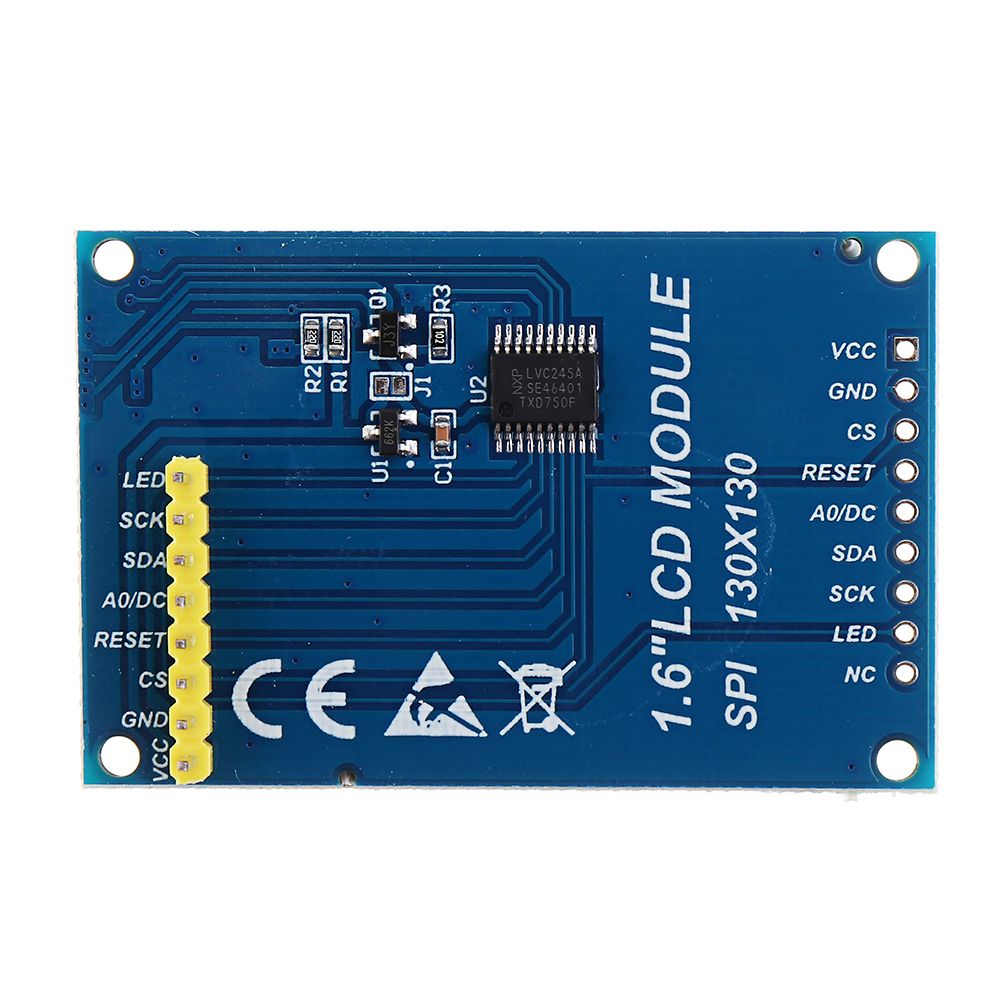

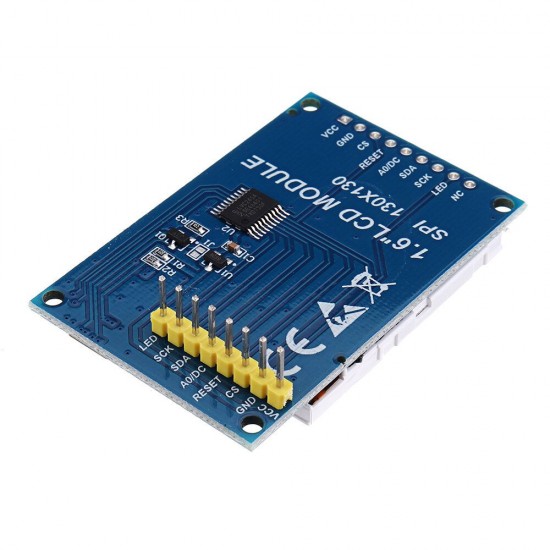

| Number | Pin | Meaning |
| 1 | GND | LCD power supply (ground) |
| 2 | VCC | LCD power supply (positive)3.3V/5V |
| 3 | CS | LCD chip select signal |
| 4 | RESET | LCD reset signal |
| 5 | A0/DC | LCD register / data selection signal |
| 6 | SDA | SPI bus data signal |
| 7 | SCK | SPI bus clock signal |
| 8 | LED | Backlight control signal (high level lighting, if you do not need control, please connect 3.3V) |
| Number | Pin | Meaning |
| 1 | GND | LCD power supply (ground) |
| 2 | VCC | LCD power supply (positive)3.3V/5V |
| 3 | CS | LCD chip select signal |
| 4 | RESET | LCD reset signal |
| 5 | A0/DC | LCD register / data selection signal |
| 6 | SDA | SPI bus data signal |
| 7 | SCK | SPI bus clock signal |
| 8 | LED | Backlight control signal (high level lighting, if you do not need control, please connect 3.3V) |
